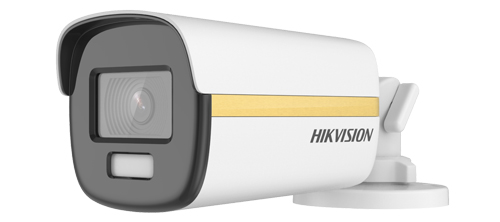

DS-2CE12DF3T-F

Description

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night24/7 Color Imaging
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
• Signal SystemPAL/NTSC
• Slow ShutterMax. 16 times
• Light AlarmSolid Light Alarm (White Light)

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°

  3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°

  6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°

• Lens MountM12

• Illuminator
• Supplement Light RangeUp to 40 m
• Smart Supplement LightYes
• Supplement Light TypeWhite Light

• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Smart Light, Anti-Banding
• Frame Rate

  TVI: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Day/Night ModeColor
• Wide Dynamic Range (WDR)≥130 dB
• Image EnhancementBLC, HLC, Global, HLS
• Privacy Mask4 programmable privacy masks
• Noise Reduction3D DNR/2D DNR
• White BalanceAuto/Manual

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• Event
• Motion Detection4 programmable motion areas

• General
• Power

  12 VDC ± 25%, max. 4.2 W

  *You are recommended to use one power adapter to supply the power for one camera.

• MaterialMetal
• Dimension194.2 mm × 78 mm × 74.5 mm (7.65″ × 3.07″ × 2.93″)
• Approx. 514.5 g (1.13 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C

• Approval
• ProtectionIP67
