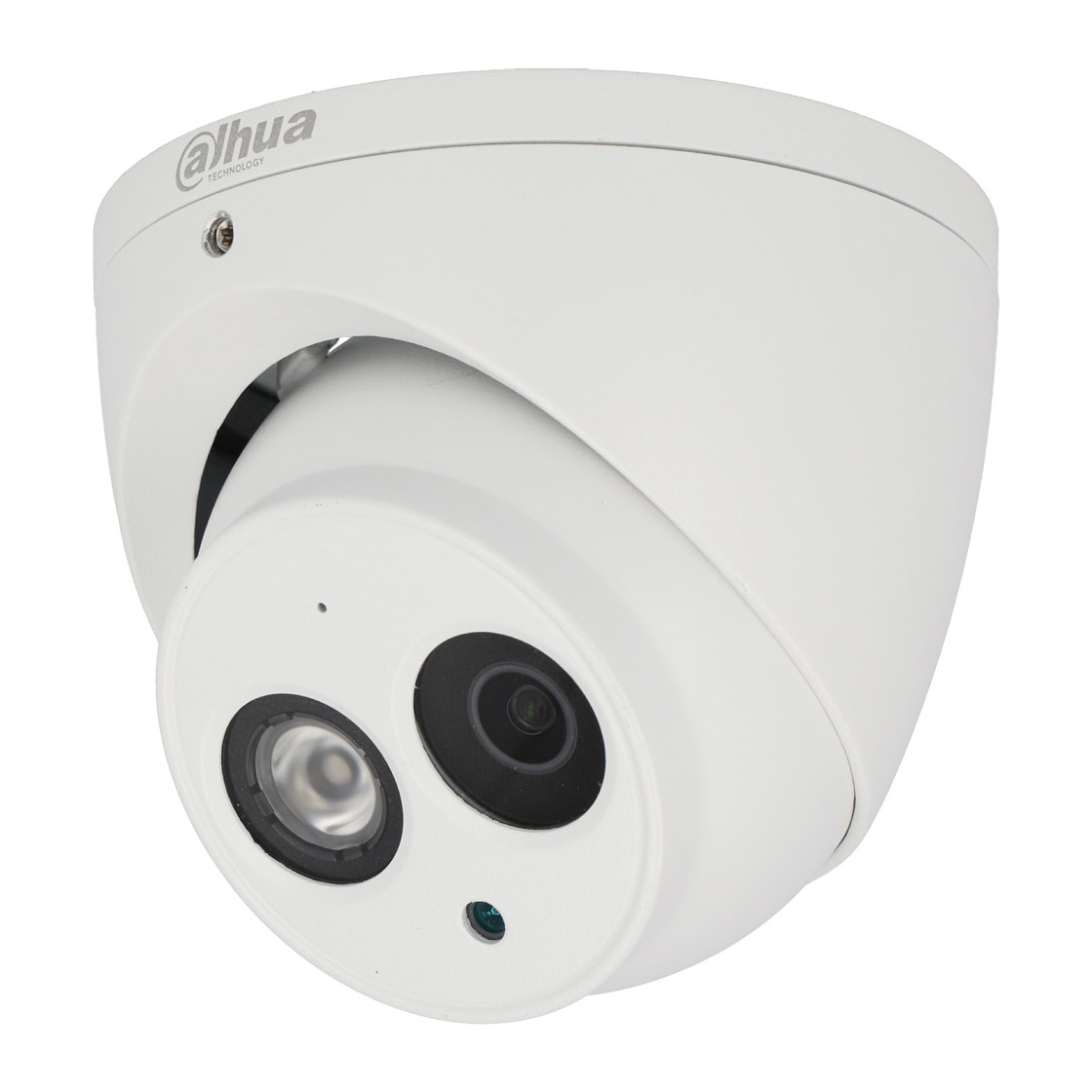

DH-HAC-HDW1200EMP-A-S5

Description

Technical Specification
Camera
Image Sensor 1/2.7″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 50m (164feet)
IR On/Off Control Auto / Manual
IR LEDs 1
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F1.85
Angle of View H: 89.9° (103°, 54.7°)
Focus Control N/A
Close Focus Distance 600mm (900mm, 2000mm)
23.62” (35.43″, 78.74”)
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition Distance
Detect 25px/m
(8px/ft)
2.8mm: 42m(139ft)
3.6mm: 53m(175ft)
6mm: 78m(257ft)
Observe 63px/m
(19px/ft)
2.8mm: 17m(55ft)
3.6mm: 21m(70ft)
6mm: 31m(103ft)
Recognize 125px/m
(38px/ft)
2.8mm: 9m(28ft)
3.6mm: 11m(35ft)
6mm: 16m(51ft)
Identify 250ppm
(76px/ft)
2.8mm: 4m(14ft)
3.6mm: 5m(17ft)
6mm: 8m(26ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 78°
Rotation: 0° ~ 360°
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS
video output (Can switch)
